Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine

Name: Casun Motor Ball Screw Stepper Motor 100mNm 378V High Precision Stepper Motor for CNC Machine
Brand: Casun
Price: 18.21 USD

China Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine wholesale

Brand Name : Casun

Model Number : 28SHD4405-182GT1

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 5PC

Price : $18.21~$19.87

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 10000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Holding Torque : 100 mN.m

Voltage : 3.78V

Current : 1.4A

Body Length : 45mm

Weight : 0.18 kg

Phase Resistance : 2.7 ohm ±10% （At 20℃）

Shaft Length : 182 mm

Phase : 2

Insulation Class : Class B

Contact Now

Casun Motor Ball Screw Stepper Motor 100 mN.m 3.78V High Precision Stepper Motor for CNC Machine

The Casun Ball Screw Stepper Motor combines a high-precision stepper motor with an integrated ball screw mechanism, delivering exceptional linear motion control for CNC machines and automation systems. With 100 mN.m torque and 3.78 V low-voltage operation, this motor is engineered for smooth, backlash-free movement in demanding industrial environments.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

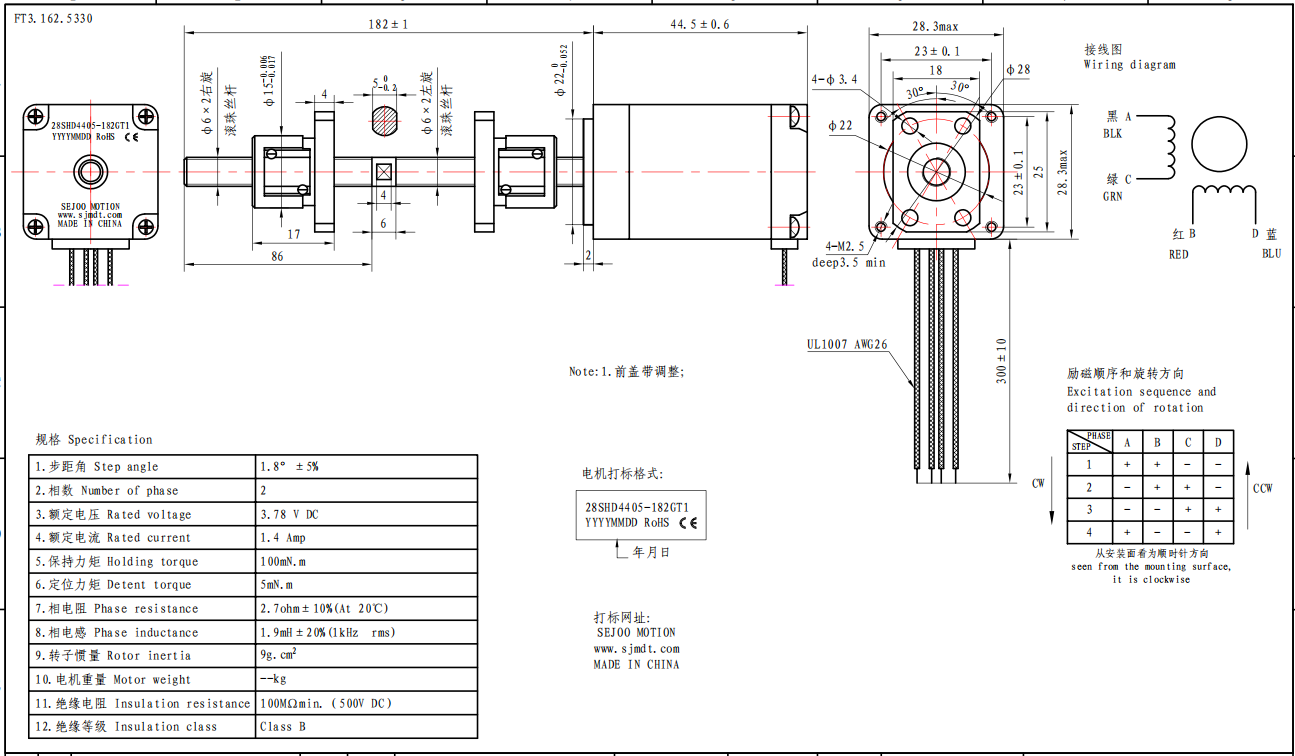

Dimensions

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine

Motor Specifications

Step Angel	1.8°
Frame Size	45 mm
Number of Phase	2 Phase
Rated Current	1.4 Amp
Holding Torque	100 mN.m
Resistance	2.7 ohm
Inductance	1.9 mH
Rotor Inertia	9 g.cm²
Motor weight	0.18 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Motor Ball Screw Stepper Motor 100mN.m 3.78V High Precision Stepper Motor for CNC Machine

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
