Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m

Name: Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mNm
Brand: Casun
Price: 34 USD

China Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m wholesale

Brand Name : Casun

Model Number : 42SHD4045-19AH-IDH42

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 5PC

Price : $34~$37

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 10000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Holding Torque : 300 mN.m

Voltage : 3.2 V

Current : 1.68 A

Body Length : 57 mm

Weight : 0.2 kg

Phase Resistance : 1.9 ohm ±10% （At 20℃）

Shaft Length : 19 mm

Phase : 2

Insulation Class : Class B

Contact Now

Casun Nema 17 Hybrid Stepper Motor IDH42 High-quality integrated stepper motor 300 mN.m

The Casun NEMA 1 Hybrid Stepper Motor (IDH42) delivers high torque (300 mN.m) and reliable performance for precision motion control. Designed for smooth operation and durability, this integrated stepper motor is ideal for CNC machines, automation, robotics, and 3D printing.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

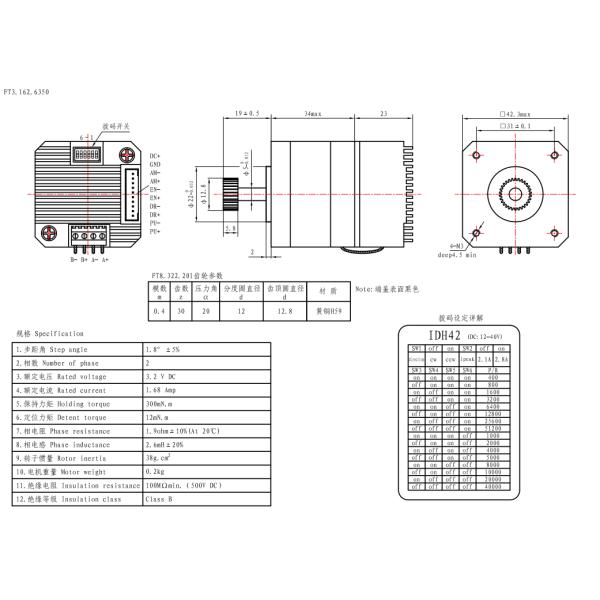

Dimensions

Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m

Motor Specifications

Step Angel	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	1.68 Amp
Holding Torque	300 mN.m
Resistance	1.9 ohm
Inductance	2.6 mH
Rotor Inertia	38 g.cm²
Motor weight	0.2 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Casun Nema 17 Hybrid Stepper Motor IDH42 High Quality Motor Integrated stepper motor 300mN.m

Please click the "Get a quote" button below to tell us your requirements.
